Infinity X-67

Product Code : INFX67

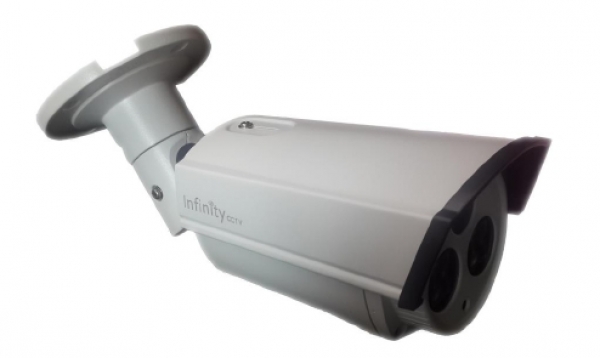

 Infinity X-67 merupakan kamera berbentuk bullet dan memiliki 2 infrared EXIR sehingga system infra merahnya lebih focus dan dengan jangkauan sampai dengan 80 meter. Kamera ini menggunakan chipset high-end sony superHAD2 dengan resolusi 800 TVL. Memiliki case yg terbuat dari material tahan air dan tahan sabotase (vandalproof).



KEY FEATURE

  • Compact design
  • Sony SuperHAD2 Infinitycctv.com.tw all rightreserved 2013
  • Min. illumination: 0.1 Lux @ F1.2 (0 Lux with IR)
  • IR cut filter with auto switch
  • Auto white balance,auto gain control, electronic shutter control and backlight compensation
  • Smart IR mode
  • Internal Synchronization
  • Advanced Engineering Design, High Reliability
  • Ingress protection: IP66
  • EXIR infrared array technology

SPECIFICATIONS

Model

Parameter

X-67

800TVLIRBullet Camera(ICR& Weather-proof)

Camera

ImageSensor

1/3"

SignalSystem

PAL/NTSC

EffectivePixels

1280(H)×960(V)

Min.Illumination

0.1 Lux @(F1.2,AGCON),0 LuxwithIR

Shutterspeed

PAL:1/50sto 1/100,000s

NTSC:1/60sto 1/100,000s

Lens

6mm (8mm optional)

Angle of view: 48.1°(6mm)

Lens Mount

M12

Day & Night

IRcutfilterwithautoswitch

HorizontalResolution

800TVL

Synchronization

Internal synchronization

Video Output

1Vp-p compositeoutput (75 Ω/BNC)

S/N Ratio

Morethan62dB

General

Working

Temperature/Humidity

-40°C-60°C(-40°F-140°F)

Humidity90%orless(non-condensing)

PowerSupply

12 VDC±10%

PowerConsumption

Max.5 W

Ingress Protection

IP66

IR Range

Approx.50 to 80 meters

Dimensions

105×104.8×263.1mm(4.13” ×4.13” ×10.36”)

Weight

800 g (1.76 lbs)

Dimensions

X-67 dimensions
