Cctv Komplit Murah - Infinity H-23

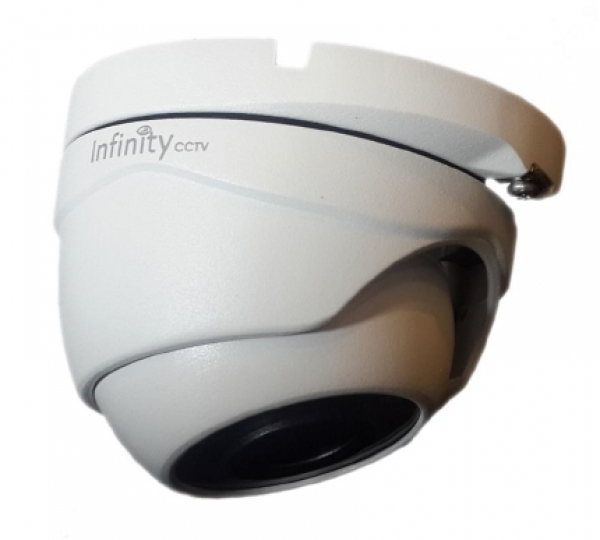

Infinity H-23 merupakan kamera berbentuk dome dan memiliki infrared dengan jangkauan sampai dengan 20 meter. Kamera ini menggunakan chipset high-end sony superHAD2 dengan resolusi 700 TVL. Memiliki case yg terbuat dari material tahan air dan tahan sabotase (vandalproof).

Key Features :

Compact design
Sony SuperHAD2 Infinitycctv.com.tw all rightreserved 2013
IR cut filter with auto switch
Min. illumination: 0.1 Lux @ F1.2 (0 Lux with IR)
Auto white balance,auto gain control, electronic shutter control and backlight compensation
Smart IR mode
Internal Synchronization
Advanced Engineering Design, High Reliability
Ingress Protection: IP66
Patent universal adjustable structure provides convenient adjustment and high reliability

Specification

Model Parameter	H-23
Model Parameter	700TVLIRDomeCamera(ICR &Weather-proof)
Camera
ImageSensor	1/3”
SignalSystem	PAL/NTSC
EffectivePixels	976 (H) ×496 (V)
Min.Illumination	0.1 Lux @(F1.2,AGCON),0 LuxwithIR
Shutterspeed	PAL:1/50sto 1/100,000s NTSC:1/60sto 1/100,000s
Lens	3.6mm(2.8mm,6mmoptional)
Lens	Angleofview:68.4°(3.6mm)
Lens Mount	M12
AngleAdjustment	Pan:0-360°,Tilt:0-75°,Rotation:0-360°
Day & Night	IRcutfilterwithautoswitch
HorizontalResolution	700TVL
Synchronization	Internalsynchronization
Video Output	1Vp-p compositeoutput (75 Ω/BNC)
S/N Ratio	Morethan62dB
General
Working Temperature/Humidity	-40°C-60°C(-40°F-140°F) Humidity90%orless(non-condensing)
PowerSupply	12 VDC±10%

PowerConsumption	Max.1.8W (Max.4W with IR cutfilteron)
Ingress Protection	IP66 Infinitycctv.com.twallrightreserved2013
IR Range	Approx.10to20meters
Dimensions	89.6 × 59.1 mm(3.53”×2.33”)
Weight	400g (0.88 lbs)

Dimension
