Infinity X-63

Product Code : INF001

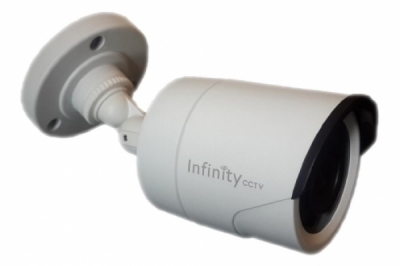

Infinity X-63 merupakan kamera berbentuk bullet dan memiliki infrared dengan jangkauan sampai dengan 20 meter. Kamera ini menggunakan chipset high-end sony superHAD2 dengan resolusi 800 TVL. Memiliki case yg terbuat dari material tahan air dan tahan sabotase (vandalproof).



KEY FEATURE

  • Compact design
  • Sony SuperHAD2 Infinitycctv.com.tw all rightreserved 2013
  • IR cut filter with auto switch
  • Min. illumination: 0.1 Lux @ F1.2 (0 Lux with IR)
  • Auto white balance,auto gain control, electronic shutter control and backlight compensation
  • Smart IR mode
  • Internal Synchronization
  • Advanced Engineering Design, High Reliability
  • 3-axis (pan/tilt/rotation) positioning allows adjustment for optimum Surveillance angles and
  • position
  • Adopt a mount for routing cables through
  • Ingress Protection: IP66

SPECIFICATIONS

Model

Parameter

X-63

800TVL IRBulletCamera(ICR & Weather-proof)

Camera

ImageSensor

1/3”

SignalSystem

PAL/NTSC

EffectivePixels

1280 (H) ×960(V)

Min.Illumination

0.1 Lux @(F1.2,AGCON),0 LuxwithIR

Shutterspeed

PAL:1/50sto 1/100,000s

NTSC:1/60sto 1/100,000s

Lens

3.6mm(2.8mm,6mmoptional)

Angleofview:68.4°(3.6mm)

Lens Mount

M12

AngleAdjustment

Pan:0-360°,Tilt:0-90°,Rotation:0-360°

Day & Night

IRcutfilterwithautoswitch

HorizontalResolution

800TVL

Synchronization

Internalsynchronization

Video Output

1Vp-p compositeoutput (75 Ω/BNC)

S/N Ratio

Morethan62dB

General

Working

Temperature/Humidity

-40°C-60°C(-40°F-140°F)

Humidity90%orless(non-condensing)



PowerSupply

12 VDC±10%

PowerConsumption

Max.1.8 W

(Max.4 WwithIR cut filteron)

Ingress Protection

IP66

IR Range

Approx.10to20meters

Dimensions

Φ70×149.5 mm(Φ2.76” ×5.89”)

Weight

360g (0.79 lbs)

Dimensions

X-63 dimensions
