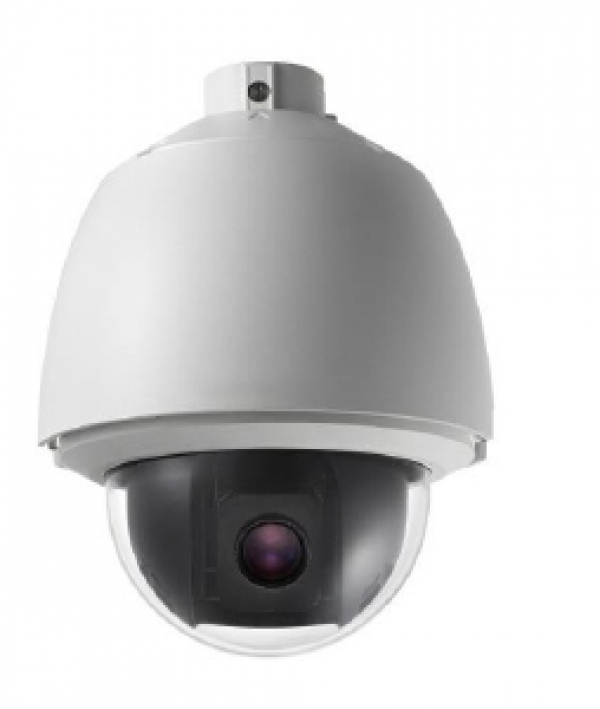

Infinity T-16 PTZ

Product Code : INFT16

Infinity T-16 merupakan speedome 5 inch dengan resolusi 540 TVL Sony SuperHAD memiliki fitur yang lengkap dan dukungan ketahanan terhadap sabotase ,cuaca maupun tegangan listrik. Cocok diaplikasikan untuk pemantauan di area yang sangat luas seperti sungai , hutan, jalan raya, Bandar udara, pelabuhan dll. Speeddome ini juga dibekali ketahanan terhadap petir sebesar 4,000 V.



KEY FEATURE

System function:

  • 1/4’’ SONY high performance CCD
  • ±0.1° Preset Accuracy
  • Self-adaptive to HIKVISION, Pelco-P/D protocol
  • 3D intelligent positioning function
  • Power-off memory function: restore PTZ & Lens status after reboot
  • Built-in temperature sensor, with display of internal temperature
  • IP66 standard (outdoor dome)
  • Scheduled PTZ movement

Camera Function :

  • Auto focus, auto white balance and auto/manual day & night switch
  • Privacy masks programmable

PTZ function:

  • 360° endless pan range and -5°-90° tilt range
  • 300°/s Pan Preset Speed and 200°/s Tilt Preset Speed
  • 0.1°-250°/s Manual Pan Speed and 0.1°-150°/s Manual Tilt Speed
  • 256 presets programmable; preset image freezing capability
  • 8 patrols, up to 32 presets per patrol
  • 4 patterns, with the total recording time not less than 10 minutes
  • Proportional zoom function
  • Park action: auto call up of PTZ movement, after a defined time of inactivity



Application Scenarios

It can be widely applied to places requiring wide-area monitoring display, such as rivers, forests, highways, railways, airports, ports, sentries, squares, parks, scenic sites, streets, stations, large venues, outside of residential areas, etc., and the auto tracking function can be applied to the perimeter protection scenes, e.g., the perimeter of airport, harbor, and residential community.

Specification

Model

Parameter

T-16

5 Inch E SeriesSpeedDome

Camera

ImageSensor

1/4’’SonyCCD

EffectivePixel

PAL:752(H)×582(V)

NTSC:768(H)×494(V)

HorizontalResolution

Color:540TVL

B/W:600TVL

SignalSystem

PAL /NTSC

Min.Illumination

Color: 0.1Lux@( F1.6,AGC ON)

B/W: 0.01Lux@( F1.6,AGC ON)

WhiteBalance

Auto /Manual/ATW / Indoor / Outdoor

AGC

Auto /Manual

S /N Ratio

≥50dB

DNR

High/Medium/Low/off

WDR

128x(On/Off/Auto)

Shutter Time

PAL: 1-1/10,000s

NTSC:1-1/10,000s

InfinityCCTVAllRightReserved,2014

Day& Night

IRCutFilter

DigitalZoom

16x

PrivacyMask

8 privacymasks programmable; a maximumof 8 zonescan be masked

simultaneouslyon the samevideo screen

Focus Model

Auto /Semiautomatic /Manual

Lens

FocalLength

3.84-88.32mm,23X

Zoom Speed

Approx.3.0s(OpticalWide-Tele)

Angleof View

50.2-2.44degree(Wide-Tele)

Min.WorkingDistance

10-1500mm(Wide-Tele)

Aperture

F1.6

Panand

Tilt

Pan Range

360°endless

Pan Speed

Pan ManualSpeed: 0.1°-250°/s,

Pan Preset Speed: 300°/s

Tilt Range

-5°-90°(Auto Flip )

Tilt Speed

Tilt ManualSpeed: 0.1°-150°/s,

Tilt Preset Speed:200°/s

ProportionalZoom

Rotation speed can beadjusted automaticallyaccordingto zoommultiples

Number of Preset

256

Patrol

8 patrols,up to 32presets per patrol

Pattern

4 patterns,with thetotalrecordingtimenot less than 10 minutes

Power-off Memory

Support

ParkAction

Preset /Patrol/ Pattern /Pan scan/Tilt scan /FrameScan /Random scan /

Panoramascan





PTZ Position Display

On /Off

Compass

Support ,thenorth can beset

Scheduled Task

Preset /Patrol/ Pattern /Pan scan/Tilt scan /FrameScan /Random scan /

Panoramascan/Day/Night

Input/

Output

Monitor Output

1.0V[p-p] /75Ω,NTSC(or PAL) composite,BNC

InfinityCCTVAllRightReserved,2014

General

Menu Language

English,Chinese

RS-485Protocols

Infinity,Pelco-P,Pelco-D,self-adaptive

Power

24VAC

Outdoor dome: Max. 20W (Heater On),Max. 12W(Heater Off)

Indoor dome: Max.12W

WorkingTemperature/

Humidity

-30 ℃-65℃(-22℉-149℉)(outdoor dome) / -10℃-50℃(14℉-122℉)(indoor dome)

90%or less

Protection Level

IP66 standard (outdoor dome)

TVS 4,000V lightningprotection,surgeprotection and

voltagetransientprotection

Mounting

Various mountingmodes optional

Dimensions

Φ220×305mm (Φ8.66”×12.00”)(Outdoor)

Φ183.4×243mm(Φ7.22”×9.56”)(Indoor)

Φ245×236mm(Φ9.65”×9.29”) (In-ceiling)

Weight (approx.)

5Kg(11.02Ibs)

Mount    Option    (only

suitable    for    outdoor

dome)

Long-armwallmount

InfinityCCTVAllRightReserved,2014



 Dimensions

 T-16 dimensions
