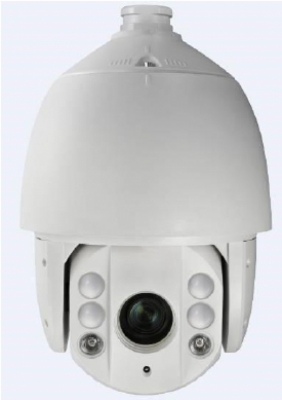

Infinity T-18 PTZ

Product Code : INFT18

Infinity T-18 merupakan speedome dengan resolusi 540 TVL Sony SuperHAD memiliki fitur yang lengkap dan dukungan ketahanan terhadap sabotase ,cuaca maupun tegangan listrik. Didukung dengan infrared yang memiliki jangkauan sampai dengan 100 meter. Cocok diaplikasikan untuk pemantauan di area yang sangat luas seperti sungai , hutan, jalan raya, Bandar udara, pelabuhan dll. Speeddome ini juga dibekali ketahanan terhadap petir sebesar 4,000 V.

 KEY FEATURE

IR Function :

  • 0 Lux minimum illumination
  • Up to 100m IR distance Infinitycctv.com.tw all rightreserved 2013
  • IR light MTBF reaching up to 30,000 hours

System function:

  • 1/4’’ high performance Sony CCD
  • ±0.1° Preset Accuracy
  • Self-adaptive to Infinity, Pelco-P/D protocol
  • 3D intelligent positioning function
  • Power-off memory function: restore PTZ & Lens status after reboot
  • Built-in temperature sensor, display internal temperature
  • IP66 standard (outdoor dome)
  • Scheduled PTZ movement

Camera Function :

  • Auto focus, auto white balance, and auto/manual day & night switch
  • Privacy masks programmable
  • Support 3D DNR, DWDR and digital zoom

PTZ function:

  • 360° endless pan range and -15°-90° tilt range
  • 240°/s Pan Preset Speed and 200°/s Tilt Preset Speed
  • 0.1°-160°/s Manual Pan Speed and 0.1°-120°/s Manual Tilt Speed
  • 256 presets programmable; preset image freezing capability
  • 8 patrols, up to 32 presets per patrol
  • 4 patterns, with the total recording time not less than 10 minutes
  • Proportional zoom function
  • Park action: auto call up of PTZ movement, after a defined time of inactivity



Application Scenarios

It can be widely applied to places with no lights or weak lights requiring wide-area and high-speed monitoring, such as rivers, forests, highways, railways, airports, ports, sentries, squares, parks, scenic sites, streets, stations, large venues, outside of residential areas, etc.

Specification

Model

Parameter

T-18

IRPTZ Dome Camera

Camera

ImageSensor

1/4’’SonyCCD

EffectivePixel

PAL: 752(H)×582(V)

NTSC: 768(H)×494(V)

HorizontalResolution

Color:540TVL

B/W: 600TVL

SignalSystem

PAL/NTSC

Min.illumination

Color: 0.1Lux@( F1.6,AGC ON)

B/W:0.01Lux@( F1.6,AGC ON)

0 Luxwith IR

WhiteBalance

Auto /Manual/ATW /Indoor /Outdoor

AGC

Auto /Manual

S /N Ratio

≥50dB

DNR

High/Medium/Low/off

WDR

128x(On/Off/Auto)

Shutter Time

PAL: 1-1/10,000s

NTSC:1-1/10,000s

Day& Night

IRCutFilter

DigitalZoom

16x

PrivacyMask

8 privacymasks programmable; a maximumof 8 zonescan be masked

simultaneouslyon the samevideo screen

Focus Model

Auto /Semiautomatic /Manual

Lens

FocalLength

3.84-88.32mm,23X

Zoom Speed

Approx.3.0s(OpticalWide-Tele)

Angleof View

50.2-2.44degree(Wide-Tele)

Min.WorkingDistance

10-1000mm(Wide-Tele)

ApertureRange

F1.6

Panand

Tilt

Pan Range

360°endless

Pan Speed

Pan ManualSpeed: 0.1°-160°/s,

Pan Preset Speed: 240°/s





Tilt Range

-15°-90°(AutoFlip )

Tilt Speed

Tilt ManualSpeed: 0.1°-120°/s,

Tilt Preset Speed: 200°/s

ProportionalZoom

Rotation speed can beadjusted automaticallyaccordingto zoom multiples

Number of Preset

256

Patrol

8 patrols,up to 32presets per patrol

Pattern

4 patterns,with thetotalrecordingtimenot less than 10 minutes

Power-off Memory

Support

ParkAction

Preset /Patrol/Pattern /Pan /Tilt /Auto / Random /Frame/Panoramascan

PTZ Position Display

On /Off

Compass

Support ,thenorth can beset

Scheduled Task

Preset /Patrol/ Pattern /Pan/Tilt /Auto / Random /Frame/Panoramascan

Infrared

IRRange

100m

IRirradiation angle

Automaticallyadjusted,dependingon thezoomratio

Input/

Output

Monitor Output

1.0V[p-p] /75Ω,PAL or NTSC composite,BNC

General

Menu Language

English/Chinese

Infinitycctv.com.twallrightreserved2013

RS-485Protocols

Infinity,Pelco-P,Pelco-D,self-adaptive

Power

24 VAC

Max.30W(IRLEDOn,Heater On)

Max.24W(IRLEDOn)

Max.15W(IRLEDOff,Heater Off)

WorkingTemperature/

Humidity

-30 ℃-65℃(-22℉-149℉)(outdoor dome)

90%or less

Protection Level

IP66 standard (outdoor dome)

TVS 4,000V lightningprotection,surgeprotection and

 voltagetransientprotection

Mounting

Various mountingmodes optional

Dimensions

Φ245 ×399mm (Φ9.65” ×15.71” ) (Outdoor)

Weight (approx.)

5.5kg(12.13Ibs)

Mount    Option    (only

suitable    for    outdoor

dome)

Long-armwallmount



 Dimensions

 T-18 dimensions
