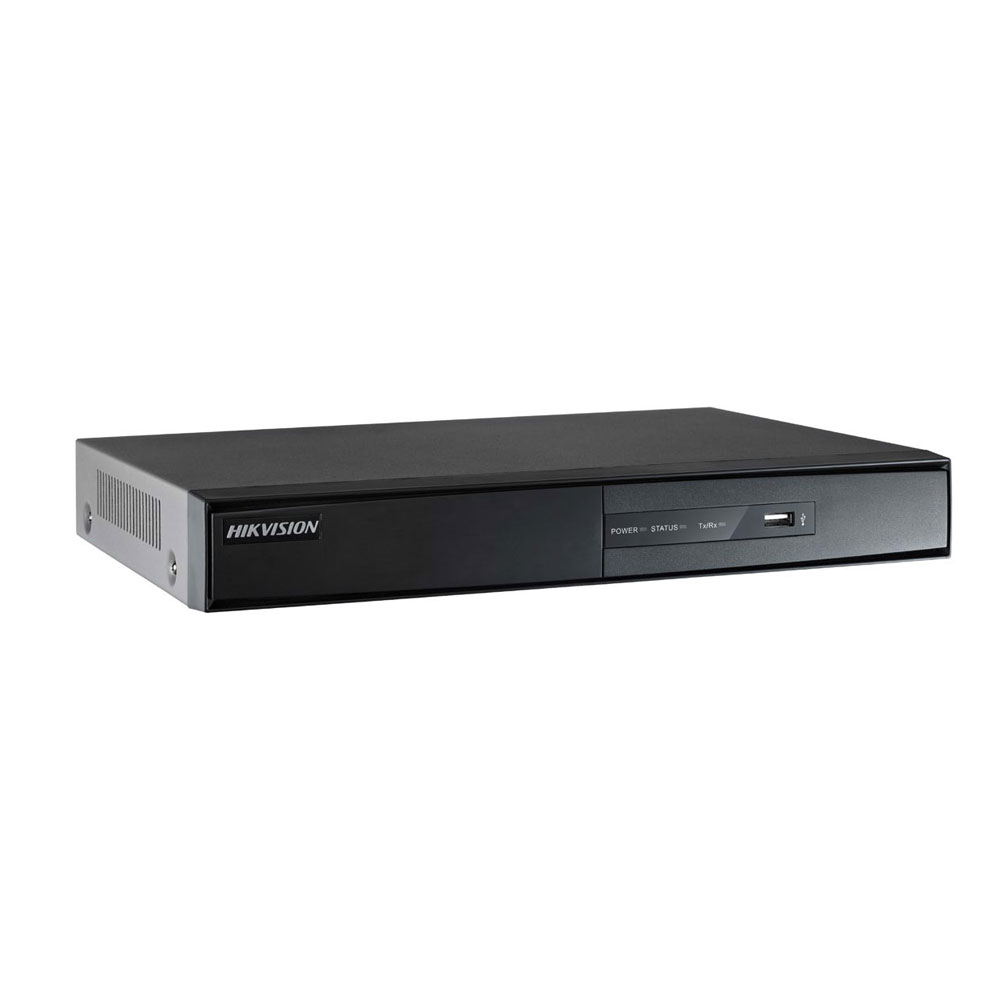

HIKVISION DS-7604NI-E1

Product Code : HIK 7604

www.hikvision.com Embedded NVR • Third-party network cameras supported • Up to 5 Megapixels resolution recording • HDMI and VGA output at up to 1920×1080P resolution • 4/8/16-ch network cameras can be connected with 25M/50M/100M incoming bandwidth • Up to 2 SATA interfaces • Support network detection, including network delay, packet loss, etc. DS-7604NI-E1 DS-7608NI-E1 DS-7616NI-E1 DS-7608NI-E2 DS-7616NI-E2 2 Video/Audio input IP video input 4-ch 8-ch 16-ch 8-ch 16-ch Two-way audio input 1-ch, RCA (2.0 Vp-p, 1KΩ) Network Incoming bandwidth 25Mbps 50Mbps 100Mbps 50Mbps 100Mbps Outgoing bandwidth 80Mbps Remote connection 128 Video/Audio output Recording resolution 5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF Frame rate Main stream: 50 fps (P) / 60 fps (N) Sub-stream: 50 fps (P) / 60 fps (N) HDMI/VGA output 1-ch, resolution: 1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz Audio output 1-ch, RCA (Linear, 1kΩ) Decoding Live view / Playback resolution 5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Capability 4-ch@1080P 8-ch@720P, 6-ch@1080P 16-ch@4CIF, 12-ch@720P, 6-ch@1080P 8-ch@720P, 6-ch@1080P 16-ch@4CIF, 12-ch@720P, 6-ch@1080P Hard disk SATA 1 SATA interface for 1 HDD 2 SATA interface for 2 HDDs Capacity Up to 4TB for each disk External interface Network interface 1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface USB interface 1 × USB 2.0 and 1 × USB 3.0 Alarm in/out 4 / 1 Others Power supply 12V DC Consumption(without hard disk) ≤ 10W Working temperature -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF) Working humidity 10 % ~ 90 % Chassis 1U chassis 380 chassis Dimensions(W × D × H) 315 × 230 × 45 mm (12.4 × 9.0 × 1.8 inch) 380 × 290 × 48mm (15.0 ×11.4 × 1.9 inch) Weight(without hard disk) ≤ 1 kg Key features Power Supply Audio In HDMI Interface LAN Network Interface Audio Out VGA Interface USB Interface Ground Power Switch Rear Panel 1. 2. 3. 4. 5. 6. 7. 8. 9. Available models Speed Dome Dome Cameras Box Cameras DIS Cameras INPUT USB Mouse Remote Control Door Contact Alarm Microphone USB Device VGA / HDMI Speaker Cell Phone Router PC Client OUTPUT control ACCESSIES DS-7600NI-E1(-E2)/A 10. Alarm I/O DS-7604/08/16NI-E1(-E2)/A DS-7604NI-E1/A DS-7608NI-E1/A DS-7616NI-E1/A DS-7608NI-E /A DS-7616NI-E /A2 /A /A /A /A /A
