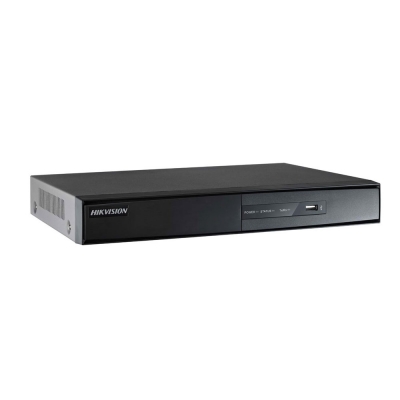

DS-7204/7208/7216 HVI-SV
Key Features :
· H.264video compression
· CIFresolution real-time recording
· Upto WD1(960*576) resolution recording
· HDMIand VGA output at up to 1920×1080P resolution
· Dual-stream
· Upto 4/8/16-ch synchronous playback
· NTP,SMTP, NFS, UPnP and iSCSI protocols
Description
Rear Panel :

1. Video in
2. Video out
3. USB interface
4. HDMI interface
5. VGA interface
6. Audio in, RCA connector
7. Audio out, RCA connector
8. LAN network interface
9. RS-485 serial interface
10. 12 VDC power input
11. Power switch
12. GND
|
DS-7204HVI-SV
|
DS-7208HVI-SV
|
DS-7216HVI-SV
|
Video/Audio input
|
Video compression
|
H.264
|
Video input
|
4-ch
|
8-ch
|
16-ch
|
Video input interface
|
BNC (1.0 Vp-p, 75 Ω), PAL / NTSC self-adaptive
|
Audio compression
|
G.711u
|
Audio input
|
1-ch, RCA (2.0 Vp-p, 1 kΩ)
|
Two-way audio input
|
1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)
|
Video/Audio output
|
HDMI / VGA output
|
1-ch, resolution:1080P: 1920×1080/60Hz; SXGA: 1280×1024/60Hz; 720P: 1280×720/60Hz; XGA: 1024×768/60Hz
|
CVBS output
|
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution:PAL: 704 × 576, NTSC: 704 × 480
|
Encoding resolution
|
WD1 / 4CIF / 2CIF / CIF / QCIF
|
Frame rate
|
WD1 / 4CIF / 2CIF @ 12 fps(P) /15 fps(N); CIF / QCIF @ 25 fps (P)/30 fps (N)
|
WD1 / 4CIF / 2CIF @ 15 fps; CIF / QCIF @25 fps (P) /30 fps (N)
|
WD1 @ 8 fps; 4CIF / 2CIF @ 10 fps; CIF / QCIF@ 25 fps (P) / 30 fps (N)
|
Video bit rate
|
32 Kbps ~ 3072 Kbps, or user defined (Max. 3072 Kbps)
|
Audio output
|
1-ch, RCA (Linear, 1 kΩ)
|
Audio bit rate
|
64 Kbps
|
Dual-stream
|
Support;Sub-stream @ CIF / QCIF
|
Stream type
|
Video, Video & Audio
|
Synchronous playback
|
4-ch
|
8-ch
|
16-ch
|
Hard disk
|
SATA
|
1 SATA interface
|
Capacity
|
Up to 4TB capacity
|
External interface
|
Network interface
|
1, RJ45 10M / 100M Ethernet interface
|
Serial interface
|
1 RS-485 interface, half-duplex
|
USB interface
|
2, USB2.0
|
General
|
Power supply
|
12 VDC
|
Consumption
|
≤ 10 W
|
≤ 10 W
|
≤ 15 W
|
Working temperature
|
-10 °C ~ +55 °C
|
Working humidity
|
10% ~ 90%
|
Chassis
|
Standalone 1U chassis
|
Dimensions (W × D × H)
|
315 × 230 × 45 mm
|
Weight
|
≤ 2 kg(without hard disk or DVD-R/W)
|
