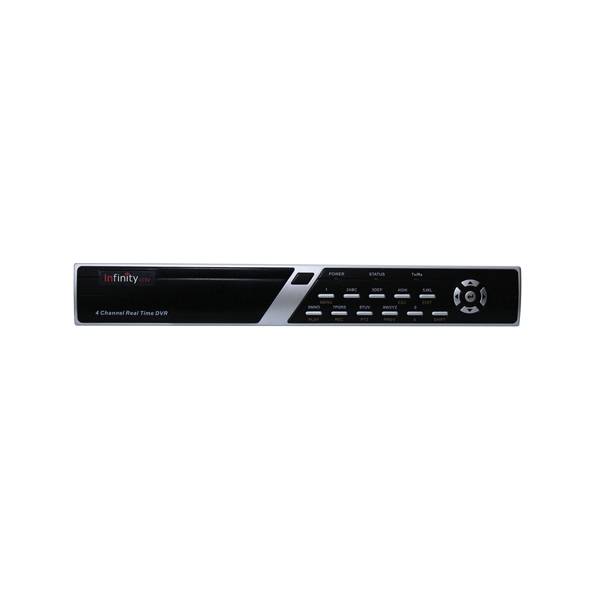

Infinity DV-2104 V.5

Product Code : DVR-I004

Infinity DV-2104 merupakan kombinasi dari kompresi H.264 termutakhir dan teknologi decoding yg dapat menghasilkan performa dan reabilitas tinggi serta waktu rekaman yang panjang. Infinity DV-2104 dapat digunakan sebagai produk system cctv mandiri, yang tepat untuk digunakan dirumah dan aplikasi bisnis dengan skala kecil dan menengah.

DVR ini merupakan seri ekonomis dimana menyediakan audio input sebanyak1 port , dan dirancang untuk tidak memiliki port rs 232 , alarm dan video spot output . Rancangan ini dibuat untuk memberikan harga yg terbaik untuk anda yang mebutuhkan system CCTV standar.



Main Features

  • Main Stream Support encoding at up to WD1 resolution and sub stream at CIF/QCIF Resolution
  • Up to 1920×1080 VGA output resolution
  • IPv6 is Supported
  • NTP, SMTP, NFS, UPnPTM and iSCSI protocols supported
  • Holiday recording schedule configuration
  • Network detection function
  • Simultaneous HDMI, VGA and CVBS output.
  • Channel-zero encoding
  • Support Dual Stream
  • HDD Quota Management; different capacity can be assigned to different channel
  • Smart searching for the event triggered record files.
  • Up to 4/8/16-ch synchronous playback
  • 1 Self-adaptive 10M/100M Network Interface
  • Support dual stream
  • NTP, SADP, DHCP protocols supported Infinitycctv

Functions & Performances

Compression :

  • PAL/NTSC adaptive video inputs. Infinitycctv.com.tw all rightreserved 2014@
  • H.264 video compression with high reliability and superior definition.
  • Each Channel support dual-stream
  • Main stream support encoding at up to WD1 resolution and sub stream at CIF/QCIF resolution.
  • Independent configuration for each channel, including resolution, frame rate, bit rate, image quality, etc.
  • The quality of the input and output video is configurable.
  • Normal and event recording parameters configurable for per individual camera.
  • Encoding for both audio/video composite stream and video stream; audio and video synchronization during composite stream encoding.
  • Watermark Technology

Local Monitoring :

  • HDMI/VGA output at Up to 1920×1080 resolution.
  • Simultaneous HDMI VGA and CVBS output.
  • 1/4/6/8/9/16-division live view is supported, and the display sequence of screen is adjustable.
  • Live view screen can be switched in group, and manual switch and automatic cycle review is also provided, the interval of automatic cycle can be adjusted.
  • Quick setting menu is provided for live view
  • The selected live view channel can be shielded
  • Motion detection, tamper-proof, video exception and video loss alarm functions.
  • Privacy Mask.
  • Several PTZ protocol supported; PTZ preset, patrol and pattern.
  • Zooming in by clicking the mouse and PTZ tracing by dragging mouse.

Hard Disk Management :

  • Connection to 1 SATA hard disk supported, with up to 4TB storage capacity.
  • 8 network disk (8 NAS disks, or 7 NAS disks+1 IP SAN disk) can be connected.
  • HDD Group Management
  • Support HDD Standby function
  • HDD property: redudancy, read-only, read/write (R/W).
  • HDD Quota Management; different capacity can be assigned to different channel.
  • S.M.A.R.T technology. Infinitycctv.com.tw all right reserved 2014

Recording :

  • Holiday recording schedule configuration.
  • Normal and event video encoding parameters.
  • Multiple recording types: manual, normal, and motion.
  • 8 recording time periods with separated recording types.
  • Pre-record and post-record for motion detection for recording, and prerecord time for schedule and manual recording.
  • Searching record files by event.
  • Customization of tags, searching and playing back by tags.
  • Locking and unlocking record files.
  • Local redundant recording.
  • Searching and playing back record files by channel number, recording type, start time, end time, etc.
  • Smart search for the selected area in the video.
  • Zooming in when playback.
  • Playing reversely.
  • Supports pause, speed up, speed down, skip forward, and skip backward when playback, locating by dragging the mouse.
  • Up to 4/8/16-ch synchronous playback.

Backup :

  • Export video data by USB or SATA storage device.
  • Export video clips when playback.
  • Management and maintenance of backup devices.

Alarm & Exception :

  • Alarm for video loss, motion detection, tampering, abnormal signal, video input/output standard mismatch, illegal login, network disconnected, IP confliction, abnormal record, HDD error, and HDD full, etc.
  • Alarm event triggers full screen monitoring, audio alarm, notifying surveillance center and sending email.
  • Automatic restore when system is abnormal.

Others :

  • Operable by mouse, or IR remote control.
  • Three-level user management; admin user is allowed to create many operating accounts and define their operating permission, which s the limit to access any channel.
  • Operation, exceptions and log recording and searching.
  • Import and export of device configuration information.

Network :

  • 1 self-adaptive 10M/100M network interface.
  • IPv6 is supported.
  • TCP/IP protocol, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, UPnP™, NFS, and iSCSI are supported.
  • TCP, UDP and RTP for unicast.
  • Remote search, playback, download, locking and unlocking the record files, and downloading files broken transfer resume.
  • Remote parameters setup; remote import/export of device parameters.
  • Remote viewing of the device status, system logs and alarm status.
  • Remote locking and unlocking of control panel and mouse. Remote HDD formatting and program upgrading.
  • Remote system restart.
  • RS-485 transparent channel transmission.
  • Alarm event and exception information can be sent to the remote host.
  • Remotely start/stop recording.
  • Upgrade by remote FTP server.
  • Remote PTZ control.
  • Two-way audio and voice broadcasting.
  • Embedded WEB server.

Development :

  • SDK for Windows and Linux system.
  • Source code of application software for demo.
  • Development support and training for application system.
