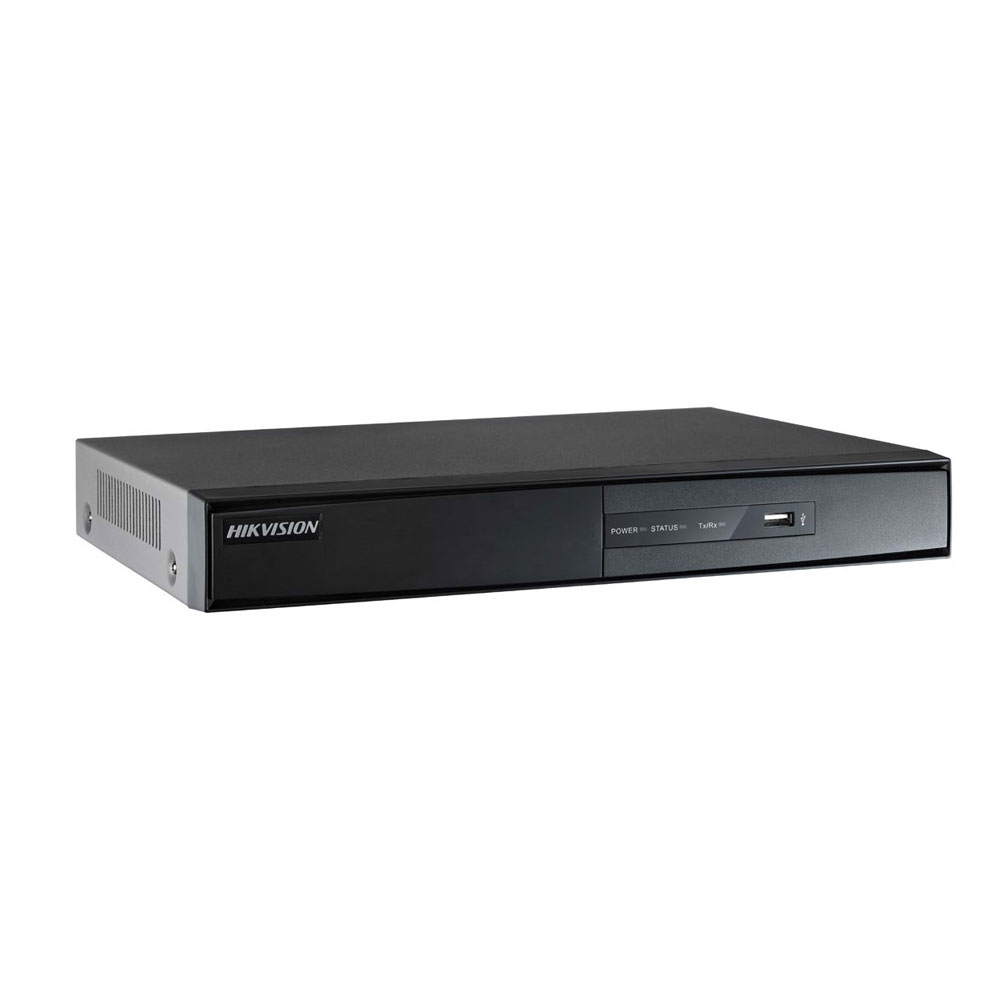

HIKVISION DS-7204HVI-SV
Code : HIK 7204
Harga Special Hubungi CS


Deskripsi :

DS-7204/7208/7216 HVI-SV

Key Features :

· H.264video compression

· CIFresolution real-time recording

· Upto WD1(960*576) resolution recording

· HDMIand VGA output at up to 1920×1080P resolution

· Dual-stream

· Upto 4/8/16-ch synchronous playback

· NTP,SMTP, NFS, UPnP and iSCSI protocols



Description

Rear Panel :

1.      Video in

2.      Video out

3.      USB interface

4.      HDMI interface

5.      VGA interface

6.      Audio in, RCA connector

7.      Audio out, RCA connector

8.      LAN network interface

9.      RS-485 serial interface

10.  12 VDC power input

11.  Power switch

12.  GND





DS-7204HVI-SV

DS-7208HVI-SV

DS-7216HVI-SV

Video/Audio input

Video compression

H.264

Video input

4-ch

8-ch

16-ch

Video input interface

BNC (1.0 Vp-p, 75 Ω), PAL / NTSC self-adaptive

Audio compression

G.711u

Audio input

1-ch, RCA (2.0 Vp-p, 1 kΩ)

Two-way audio input

1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)

Video/Audio output

HDMI / VGA output

1-ch, resolution:1080P: 1920×1080/60Hz; SXGA: 1280×1024/60Hz; 720P: 1280×720/60Hz; XGA: 1024×768/60Hz

CVBS output

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution:PAL: 704 × 576, NTSC: 704 × 480

Encoding resolution

WD1 / 4CIF / 2CIF / CIF / QCIF

Frame rate

WD1 / 4CIF / 2CIF @ 12 fps(P) /15 fps(N); CIF / QCIF @ 25 fps (P)/30 fps (N)

WD1 / 4CIF /  2CIF  @  15 fps; CIF / QCIF @25 fps (P)  /30 fps (N)

WD1 @ 8 fps; 4CIF / 2CIF @ 10 fps;  CIF / QCIF@ 25 fps (P) /  30 fps (N)

Video bit rate

32 Kbps ~ 3072 Kbps, or user defined (Max. 3072 Kbps)

Audio output

1-ch, RCA (Linear, 1 kΩ)

Audio bit rate

64 Kbps

Dual-stream

Support;Sub-stream @ CIF / QCIF

Stream type

Video, Video & Audio

Synchronous playback

4-ch

8-ch

16-ch

Hard disk

SATA

1 SATA interface

Capacity

Up to 4TB capacity

External interface

Network interface

1, RJ45 10M / 100M Ethernet interface

Serial interface

1 RS-485 interface, half-duplex

USB interface

2, USB2.0

General

Power supply

12 VDC

Consumption

≤ 10 W

≤ 10 W

≤ 15 W

Working temperature

-10 °C ~ +55 °C

Working humidity

10% ~ 90%

Chassis

Standalone 1U chassis

Dimensions (W × D × H)

315 × 230 × 45 mm

Weight

≤ 2 kg(without hard disk or DVD-R/W)
